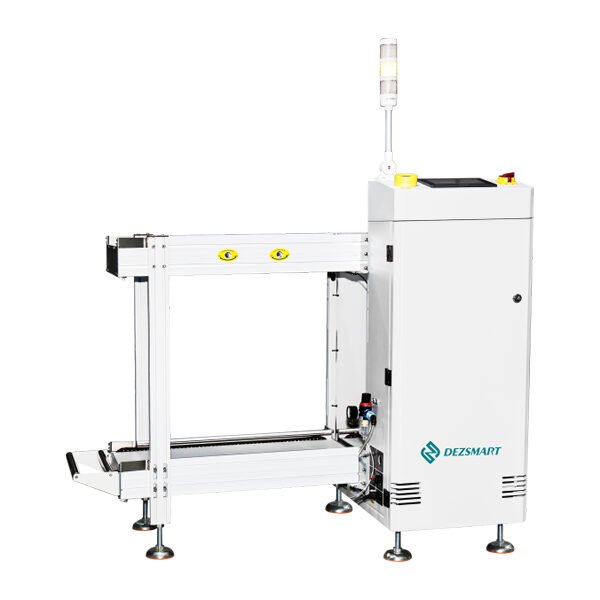

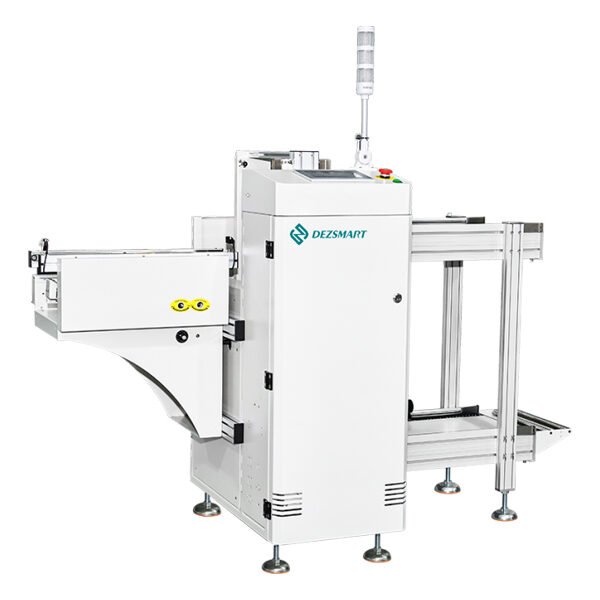

COMPACT PCB LOADER
Merkmale:
Compact structural design saves Workshop space
Two control panels available for selection:Easy-to-operate, light-touch LED membrane switch or a touchscreen.
Upper and lower pneumatic clamps ensure accurate magazine positioning
Special air circuit design prevents damage to the PCB
Automatic fault code detection and display function
Wear-resistant cables for long service life
Compatible SMEMA interface
Technical parameters
Description: This equipment is used for loading PCBs onto the SMT production line.
Magazine Capacity：1Magazine (Upper) and 1Magazine(Lower).
Feeding Time:Seconds 6 Approx. or specify
Magazine replacement time:Approx.30 seconds or specify
Stepper Pitch: 10, 20, 30, 40 mm or user-specified.
Power Supply:AC 110V or 220V; Single phase.
Power :Max. 300 VA.
Air Pressure / Consumption:4–6 bar, Max. 10 L/min.
Conveying Height:900 ± 20 mm or customer specified
Conveying Direction:Left-to-Right (L-R) or Right-to-Left (R-L).
Specification Parameters |
||||
Modell |
PCB size(MM) |
Dimension(L*W*H MM) |
Weight(KG) |
Dimension(L*W*H MM) |
| DEZ-S-TN
|
50*80-330*250
|
355*320*563 | 120 | 850*765*1250 |
| DEZ-M-TN
|
50*80-445*330
|
460*400*563 | 180 | 1170*845*1250 |
| DEZ-L-TN
|
50*80-530*390
|
535*460*563 | 220 | 1300*909*1250 |
| DEZ-XL-TN
|
50*80-530*460
|
535*530*563
|
280 | 1300*980*1250 |
