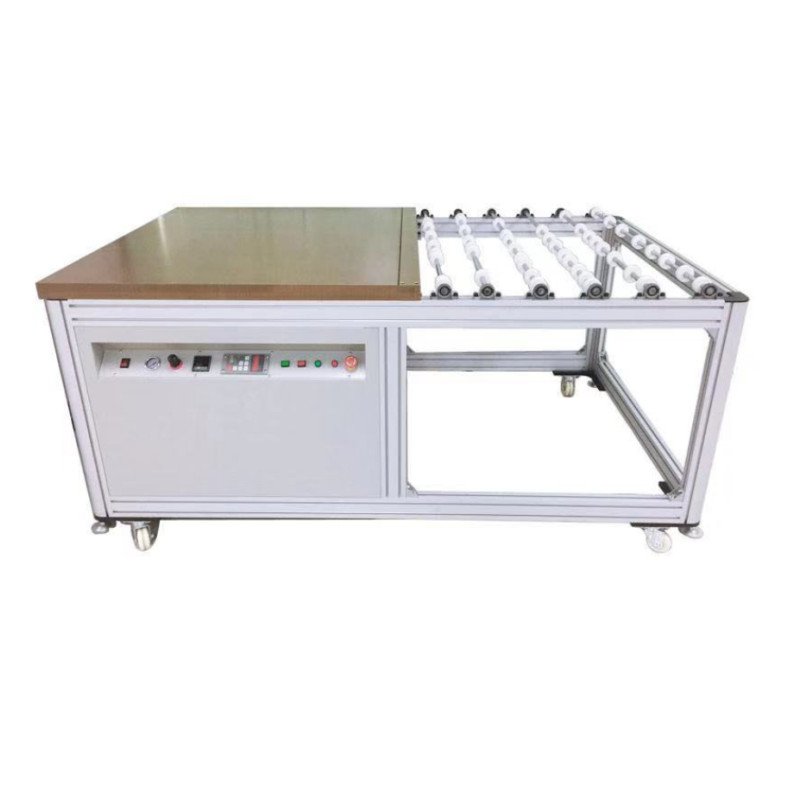

The Polarizer Film Remove Machine is the highest-end equipment for LCD screen repairing.
To remove a polarizer from an LCD screen using an LCD polarizer film removal machine, follow these steps:
- Prepare the LCD Screen: Ensure the LCD screen is powered off and disconnected from any power source. Clean the surface of the screen to remove any dust or debris.
- Set Up the Removal Machine: Place the LCD screen securely onto the platform of the LCD polarizer film removal machine. Ensure it is positioned properly and securely fastened to prevent any movement during the process.
- Adjust Settings: Set the machine to the appropriate settings based on the size and type of the LCD screen, as well as the condition of the polarizer film. Follow the manufacturer’s instructions for the specific machine you are using.
- Activate the Machine: Turn on the LCD polarizer film removal machine and initiate the removal process. The machine will use heat and mechanical action to separate the polarizer film from the LCD screen.
- Monitor Progress: Keep an eye on the progress of the removal process. Ensure that the machine is functioning properly and that the polarizer film is being removed evenly across the screen.
- Complete Removal: Once the removal process is complete, turn off the machine and carefully remove the LCD screen from the platform. Inspect the screen to ensure that the polarizer film has been completely removed.
- Clean the Screen: Use a soft, lint-free cloth and a mild cleaning solution to clean any residue left on the LCD screen after the polarizer film removal process. Ensure that the screen is completely clean and free from any debris.
- Inspect the Screen: After cleaning, carefully inspect the LCD screen for any damage or imperfections. If necessary, take note of any issues that may require further attention or repair.
If you need polarizer film, please contact us or click here to know more product details.
| طراز الجهاز | ST-65T |
|---|---|
| Device Name | LCD Film Remove Machine |
| Working Principle | The principle of polarizing film tearing machine is to manually tear diagonal opening of 8-10cm.Fix it on the tearing film roller of device with adhesive tape. Start high-power inverter motor,peel off the polarizer on the LCD screen. |
| Equipment Use | Polarizer film tearing machine refers to various kinds of LCD assembly and rework process, process equipment for stripping off polarizers of liquid crystal display panels with surface scratches and other undesirable products, especially suitable for thin, large LCD panel polarizer lift-off process. |
| Equipment Specifications | Suitable for LCD panel within 32-65 inches |

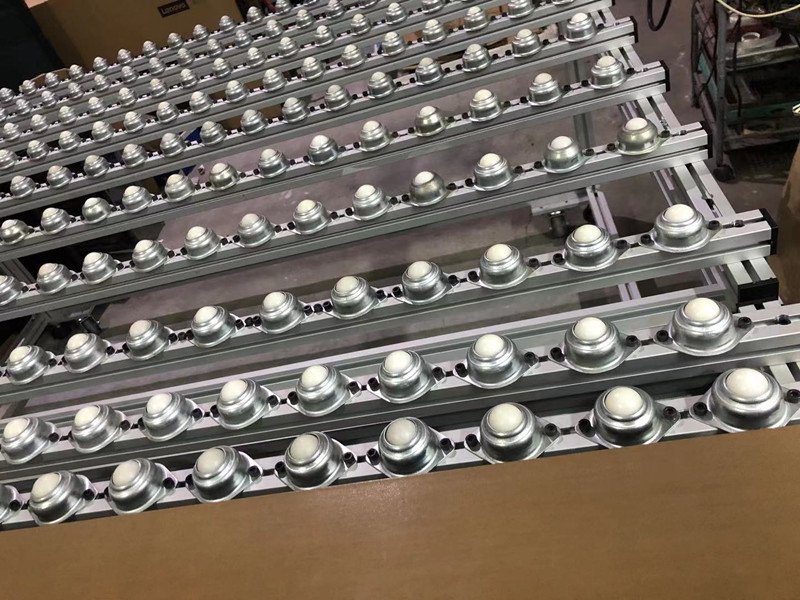

| Function Characteristics | * Select high-precision concentric hobbing steel wheel in the same direction force peeling off film,not easy to slip off,not easily deformed and so on characteristics . * Using nine concentric and same level anti-staticrubber ring sets as auxiliary stage,greatly reducing the peeling off film process of due to non-horizontal force or moving resistance arising the breakage rate. * Preheating with a temperature controller,built in PID temperature self-tuning function module, can make the speed control more accurate. * The device parameters and specifications can be customized and modified according to customer requirements . |
| Basic Parameters | * Input power: AC220V 50-60HZ * Rated power: 2-6KW * Working pressure: 0.4-0.8MPA * Peeling off speed: Adjustable * Heating method: Constant temperature * Temperature range: RT-500℃ adjustable * Thermocouple: K type * Operating mode: Button operation |
| Equipment Material | The main components are steel, electrophoresis aluminum , iron, plastic, etc. |
| Equipment Packaging | Wooden boxes (Plywood box, no fumigation is required for export) |
| أبعاد | 2000*1200*900mm(L*W*H) |
| Package Size | 2150*1340*1140mm(L*W*H) |
| وزن | Net weight 260KG，Gross weight 340KG |
